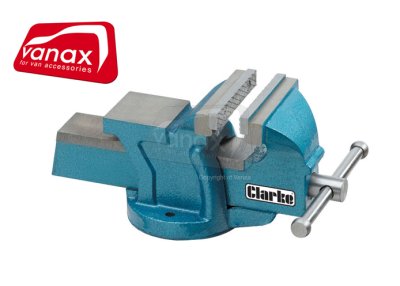

100mm vice (fixed)

Traditional Record Vice heritage & quality which is ideal for general light workshop use the incorporated anvil adds to this vices versatility. The replaceable jaw inserts will ensure a long and useful life.

• 1,500kg holding pressure
• Body and slide casting material: Grey iron
• Jaw width: 100mm
• Throat depth (from top of jaw to top of slide): 50mm
• Max jaw opening: 80mm
• Overall length of  vice when closed: 220mm
• Overall height of vice: 117mm
• Distance between centres of front fixing-holes: 90mm
• Distance from mid-point between front fixing-hole centres to centre of rear fixing-hole: 45mm
• Fixing-hole diameter: 10mm
• Body/base casting thickness in fixing-hole area: 12mm
• Handle diameter: 80mm
• Handle length: 125mm
• Max recommended workpiece weight: = 25 kg
• Weight: 4.2kg
• Pt. No. 040317771
