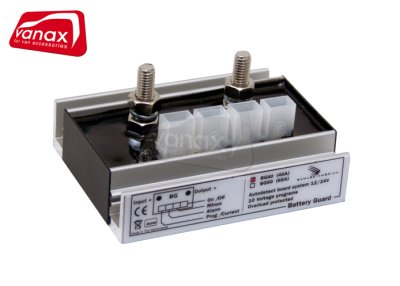

Battery Protector - 60A 12/24V

Programmable Battery Guard is the ideal solution for operators and installers,

when batteries need to be protected from heavy discharge due to additional loads

being fitted.

Installation: the simplicity of connections makes it ideal for both OEM and Aftermarket installations.

Ten Voltage Settings: the system has 10 voltage settingsfrom 10 - 16V that are easily set by the vehicle builder/installer

Manual Isolation: there is also the option to wire in a switch for remote manual

isolation of the loads.

Alarm: option available to sound buzzer/alarm after 12 seconds at low voltage

setting if there is no change in the voltage after a further 90 seconds the BG will shut

down the loads and the alarm will be stopped.

Overvoltage: at overvoltage 16V (32V) the BG will shut down immediately to protect

the equipment and pulse the alarm to alert the operator.

BG40 Technical Specifications

Maximum load (shut down current) 60A (65A)

Dual Voltage  - auto deyects if fitted to 12v or 24V

Peak Current - 120A - shuts down at overload after 5 secs, start-up after 1 min

Watertight IP66 enclosure

Pt no: BGM60
